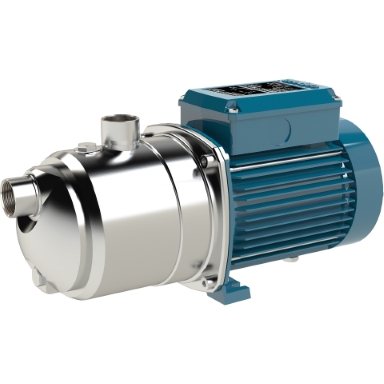

NGX 4/22-60
72A50372001







Loading...

PUMP AND MOTOR DATA

n (rpm): 3450
N. of impellers: 1
H max (m): 37.50
H min (m): 19.00
Q min (mc/h): 0.30
Q max (mc/h): 8.40
Pn (kW): 1.10
Pn (HP): 1.50
Impeller diameter (mm): 118.00
Motor type: IM
Motor phase: 3~
Un (V): 220/380
fn (Hz): 60
Poles: 2
In (A): 5.6 / 3.2
PF: 0.77
Insulation class: F
Duty: S1
IE: IE3-84.0
Weight (kg): 14.500
ingress protection (IP): IP 54

MATERIALS

Pump Casing: Cr-Ni steel 1.4301 EN 10088 (AISI 304)
Casing Cover: Cr-Ni steel 1.4301 EN 10088 (AISI 304)
Impeller: Brass P-Cu Zn 40 Pb 2 UNI 5705
Wear ring impeller-diffuser: Cr-Ni steel 1.4301 EN 10088 (AISI 304)
Diffuser: Noryl PPO-GF20
Ejector: Noryl PPO-GF20
Shaft: Chrome steel 1.4105 EN 10088 (AISI 430F)
Mechanical Seal: Carbon-Ceramic-NBR

Dimensions are not available. Please contact our sales department export@calpeda.it
